15W 24VDC Edge Light LED Module With Elite Lenses
Transform your light boxes with our edge light LED module. Advanced lenses enable slim designs without sacrificing evenness. Paired with CREE LEDs, it delivers stunning illumination for various applications. Easy installation and connection. Customization backed by decade-long LED lighting expertise.
Model MC1038VM
Key Features
- CREE High-power LEDs
- Elite Lenses
- Onboard Constant Current Driver Unit.
- Customization welcomed
- 5-year warranty
Quick Specs
- 5 LEDs
- 24 V DC
- 15 W
- 1000 Lumens
- Body Length 364 mm(≈14 in.)
Description

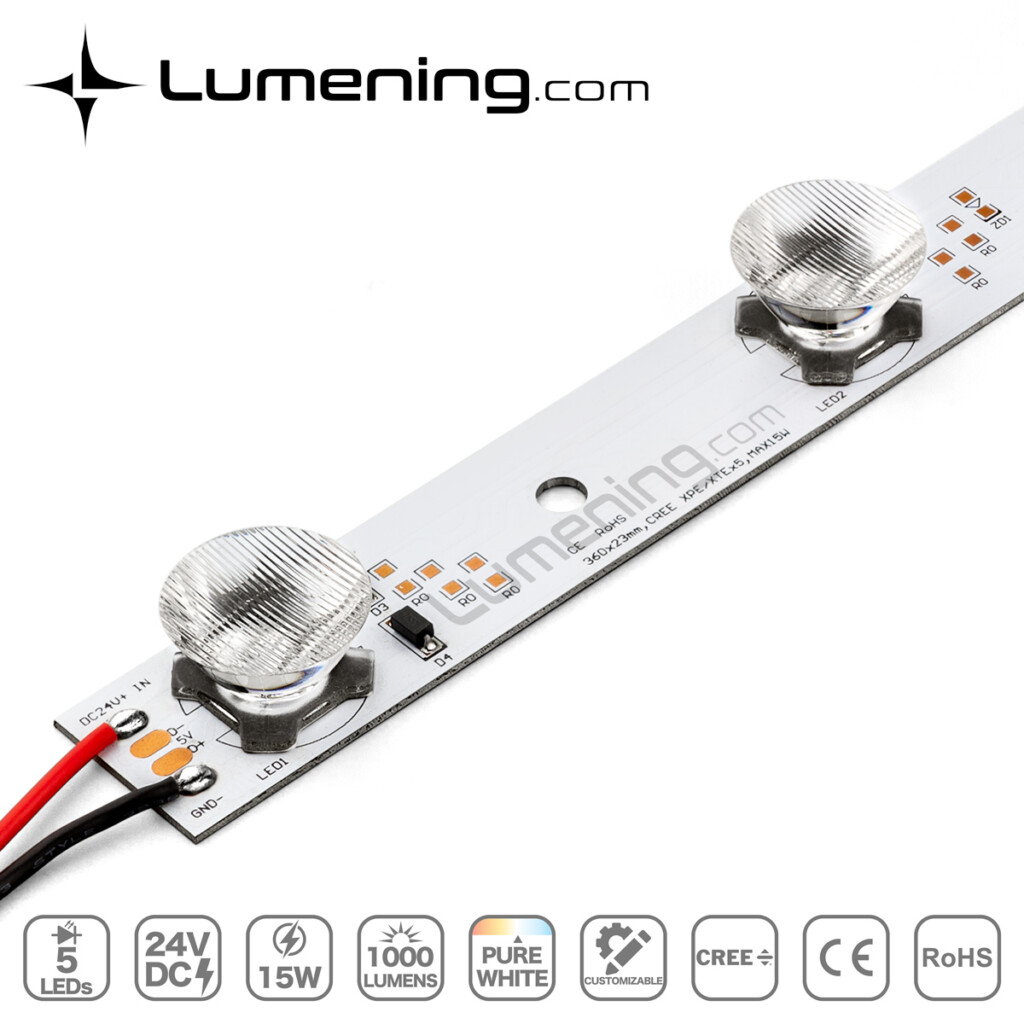

Looking for the secret to beautiful, thin light boxes? Meet our Edge-lit LED module(also known as Edge light LED module, LED side light module, side light LED bar) Powered by CREE high-power LEDs and paired with cutting-edge high-transmittance PMMA Lenses which work magic to make light boxes slimmer, this module delivers exceptional brightness and uniformity for both single and double-sided SEG fabric light boxes, light box displays and frameless light box systems.
The high-quality aluminum PCB ensures optimal thermal management, while the onboard constant current driver maximizes LED performance. Installation is a snap, and plug-and-play connections make setup effortless.
Energy-efficient and rigorously tested, our modules are the fruit of over 10 years of LED lighting expertise. But we don’t stop there – we offer customization options to perfectly match your project requirements, from alternative LEDs to unique sizes and connectors.
Partner with us to elevate your lighting projects and stay ahead of the competition.
Check out other awesome Lumening Edge light LED modules for your light boxes
Specifications
All specs open to customization
| Model Number | MC1038VM |
| Power Consumption | 15 W |
| Power per LED | 3 W |
| Input Voltage | 24 V DC |
| Luminous Flux | 1000 lumens ±5% |
| Beam Angle | 9°×54° |
| Optic Material | PMMA |
| CCT Correlated Color Temperature | 6500 K 2500–7000 K Available for your selection |
| Light Color | Pure White |
| CRI (Ra) Color Rendering Index | 75-85 |
| LED QTY. | 5 LEDs |
| LED Model | CREE XT-E |
| Chip Size | 3535 3.5×3.5 mm |
| PCB Type | Aluminum Backed |
| Cuttable | No |
| Dimmable | No We’ve designed this LED module with dimming capabilities which is NOT activated by default. If you want it dimmable, let us know before production. |
| Body Dimensions | 364L×23W×14H mm (≈14L×1W×0.5H in.) |
| Length incl. Connectors | ≈529 mm (≈21 in.) |
| LED Spacing | 80 mm (≈3 in.) |
| IP Rating Ingress Protection Rating | IP20 |
| Waterproof | No |
| Lifespan | >50000 hours |
| Operating Temperature | -30–60 °C (-22–140 °F ) |
| Place of Origin | GuangDong, China |
Features
CREE High-power LEDs:
This module uses CREE XLamp XT-E, XP-G, and XP-E High-power LEDs as the light source for high efficacy and exceptional performance. Prefer other LEDs? We can use different high-quality options to fit your needs.
Elite Optics
The advanced high-transmittance 9°×54° optics ensure bright and even illumination for 6.5-20 cm deep single-sided and 13-35 cm deep double-sided light boxes.
Onboard Constant Current Driver
The onboard constant current driver unit provides stable power to the LEDs for optimal performance, preventing flickering and extending their lifespan.
Easy Installation
Mount this LED module easily on light box aluminum extrusion with thumb screws or thermally conductive adhesive tapes. No professional skill is needed.
Foolproof Connections
Plug-and-play connections from module to module or driver. The Reverse-Polarity Protection design ensures it’s safe and operational even if connections are reversed. Enjoy a worry-free setup.
Efficient Heat Dissipation
The aluminum PCB rapidly transfers heat away from the LEDs, guaranteeing peak functioning and longevity.
5-year Warranty
We back this product with a 5-year warranty. Should it fail due to manufacturing defects, we will repair or replace it at no charge.
Applications
- Single-sided light boxes, Depth: 6.5–20 cm (≈2.5–7.5 in.)
- Double-sided light boxes, Depth: 13–35 cm (≈5–13.5 in.)
- LED light box displays and LED backlit graphic signs
- Frameless SEG light box and LED canvas light boxes
- Tension graphics and bespoke light boxes
- Standing and wall-mounted light boxes and sign boxes
- Sign boxes and sign cabinets
- Stretch ceilings
- Wall washers
