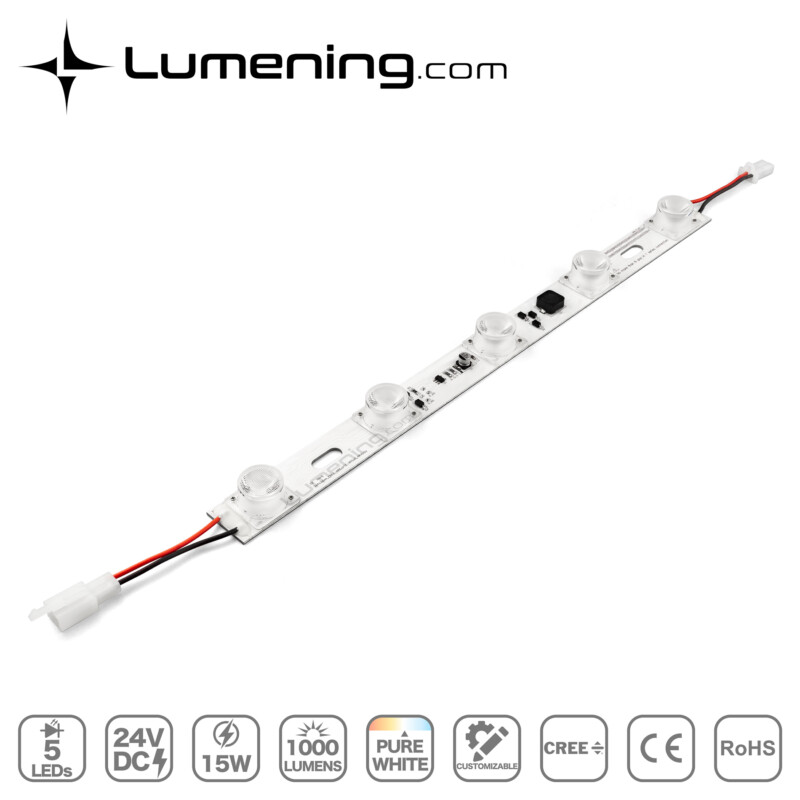

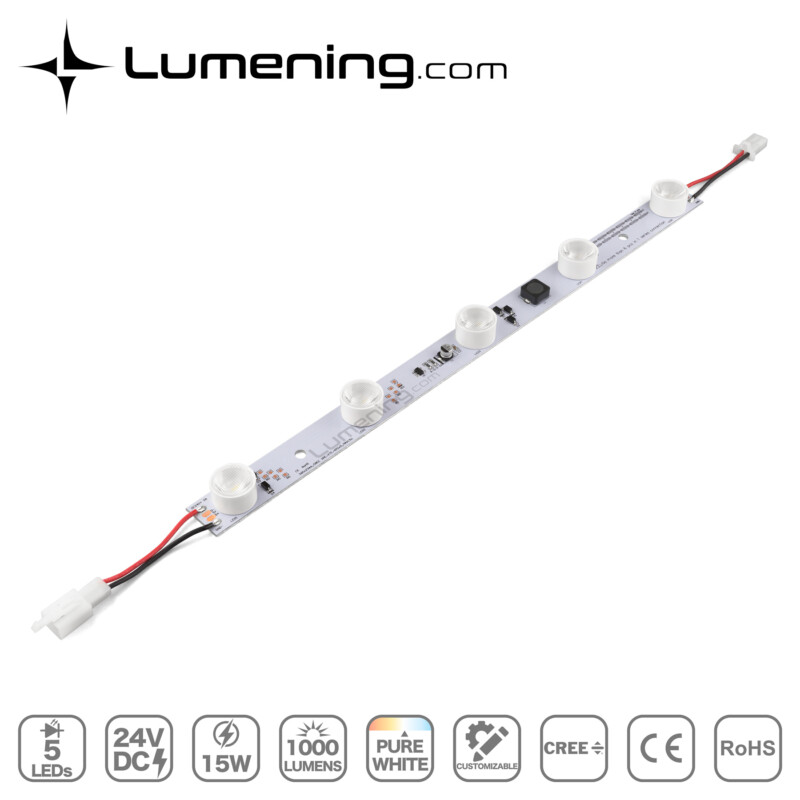

15W 24VDC Side Emitting LED Module Bar for Single-sided Double-sided LED Light Box
Enhance your light boxes with our Side Emitting LED Module. CREE LEDs and specialized optics ensure bright and consistent illumination. Easy to use and adaptable. It’s designed to take your lighting projects to the next level.
Model MC102TP8
Key Features
- CREE High-power LEDs
- Elite Optics
- Onboard Constant Current Driver Unit.
- Customization welcomed
- 5-year warranty
Quick Specs
- 5 LEDs
- 24 V DC
- 15 W
- 1000 Lumens
- Body Length 240 mm(≈9.5 in.)
Description
If you’re working with LED light boxes and looking for lighting improvements, our edge-lit LED module(also known as side emitting LED module, LED module with lenses, etc.) might interest you.
It uses CREE high-power LEDs and advanced optics, aiming to provide bright and uniform illumination across single and double-sided light boxes, LED back-lit displays, LED tension fabric light boxes.
We’ve designed this product for straightforward installation, with plug-and-play features and built-in protections.
With our extensive industry experience, we’re well-positioned to discuss customization options that meet your specific needs and budget. Let’s collaborate to enhance your light box display solutions and help your visuals make a lasting impression.
Check out other awesome Lumening Edge lit LED Strips or modules for your light boxes
Specifications
All specs open to customization
| Model Number | MC102TP8 |
| Power Consumption | 15 W |
| Power per LED | 3 W |
| Input Voltage | 24 V DC |
| Luminous Flux | 1000 lumens ±5% |
| Beam Angle | 9°×54° |
| Optic Material | PMMA |
| CCT Correlated Color Temperature | 6500 K 2500–7000 K Available for your selection |
| Light Color | Pure White |
| CRI (Ra) Color Rendering Index | 75-85 |
| LED QTY. | 5 LEDs |
| LED Model | CREE XT-E |
| Chip Size | 3535 3.5×3.5 mm |
| PCB Type | Aluminum Backed |
| Cuttable | No |
| Dimmable | No We’ve designed this LED module with dimming capabilities which is NOT activated by default. If you want it dimmable, let us know before production. |
| Body Dimensions | 240L×23W×14Hmm (≈9.5L×1W×0.5H in.) |
| Length incl. Connectors | ≈405 mm (≈16 in.) |
| LED Spacing | 50 mm (≈2 in.) |
| IP Rating Ingress Protection Rating | IP20 |
| Waterproof | No |
| Lifespan | >50000 hours |
| Operating Temperature | -30–60 °C (-22–140 °F ) |
| Place of Origin | GuangDong, China |
Features
CREE High-power LEDs:
This module uses CREE XLamp XT-E, XP-G, and XP-E High-power LEDs as the light source for high efficacy and exceptional performance. Prefer other LEDs? We can use different high-quality options to fit your needs.
Elite Optics
The advanced high-transmittance 9°×54° optics ensure bright and even illumination for 6.5-20 cm deep single-sided and 13-35 cm deep double-sided light boxes.
Onboard Constant Current Driver
The onboard constant current driver unit provides stable power to the LEDs for optimal performance, preventing flickering and extending their lifespan.
Easy Installation
Mount this LED module easily on light box aluminum extrusion with thumb screws or thermally conductive adhesive tapes. No professional skill is needed.

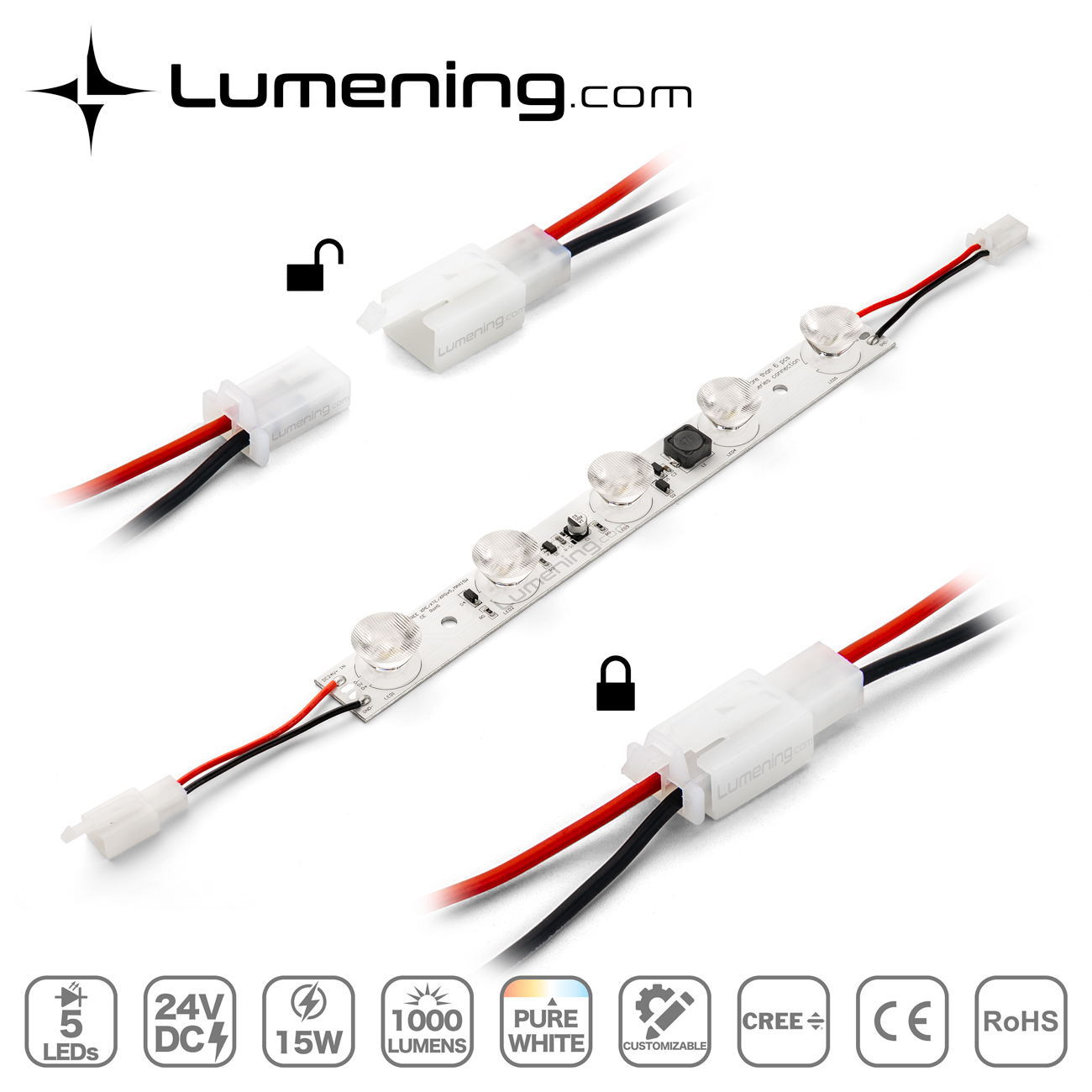

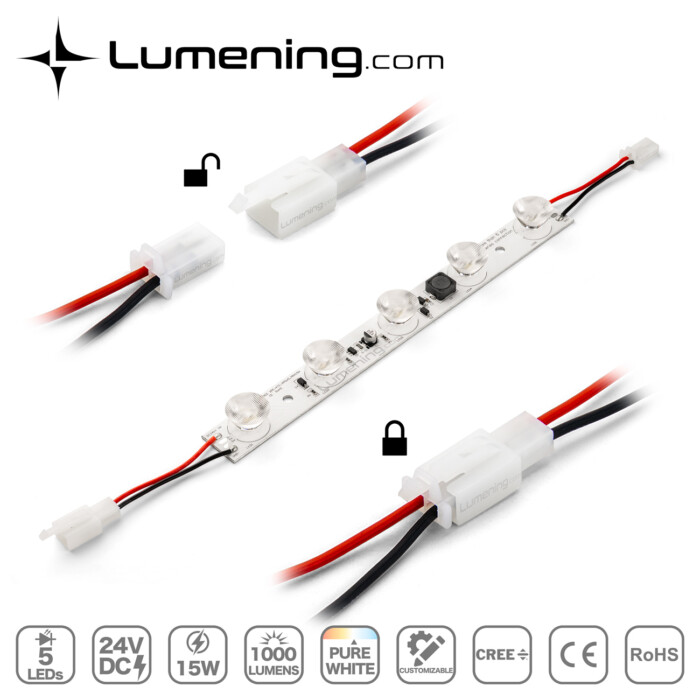

Foolproof Connections
Plug-and-play connections from module to module or driver. The Reverse-Polarity Protection design ensures it’s safe and operational even if connections are reversed. Enjoy a worry-free setup.
Efficient Heat Dissipation
The aluminum PCB rapidly transfers heat away from the LEDs, guaranteeing peak functioning and longevity.
5-year Warranty
We back this product with a 5-year warranty. Should it fail due to manufacturing defects, we will repair or replace it at no charge.
Applications
- Single-sided light boxes, Depth: 6.5–20 cm (≈2.5–7.5 in.)
- Double-sided light boxes, Depth: 13–35 cm (≈5–13.5 in.)
- LED light box displays and LED backlit graphic signs
- Frameless SEG light box and LED canvas light boxes
- Tension graphics and bespoke light boxes
- Standing and wall-mounted light boxes and sign boxes
- Sign boxes and sign cabinets
- Stretch ceilings
- Wall washers
