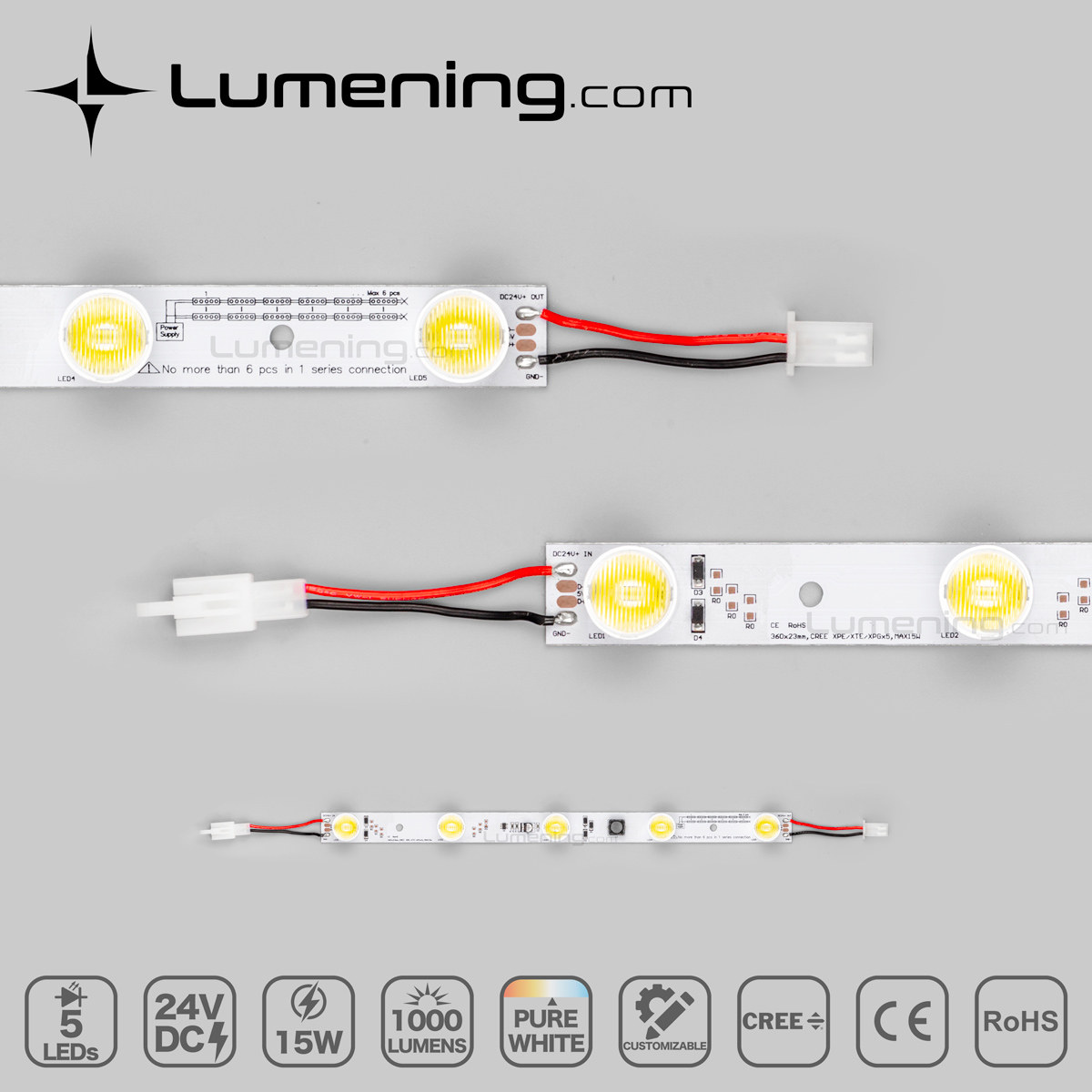

edge lit LED module with high power CREE LEDs high transmittance lenses for fabric light box

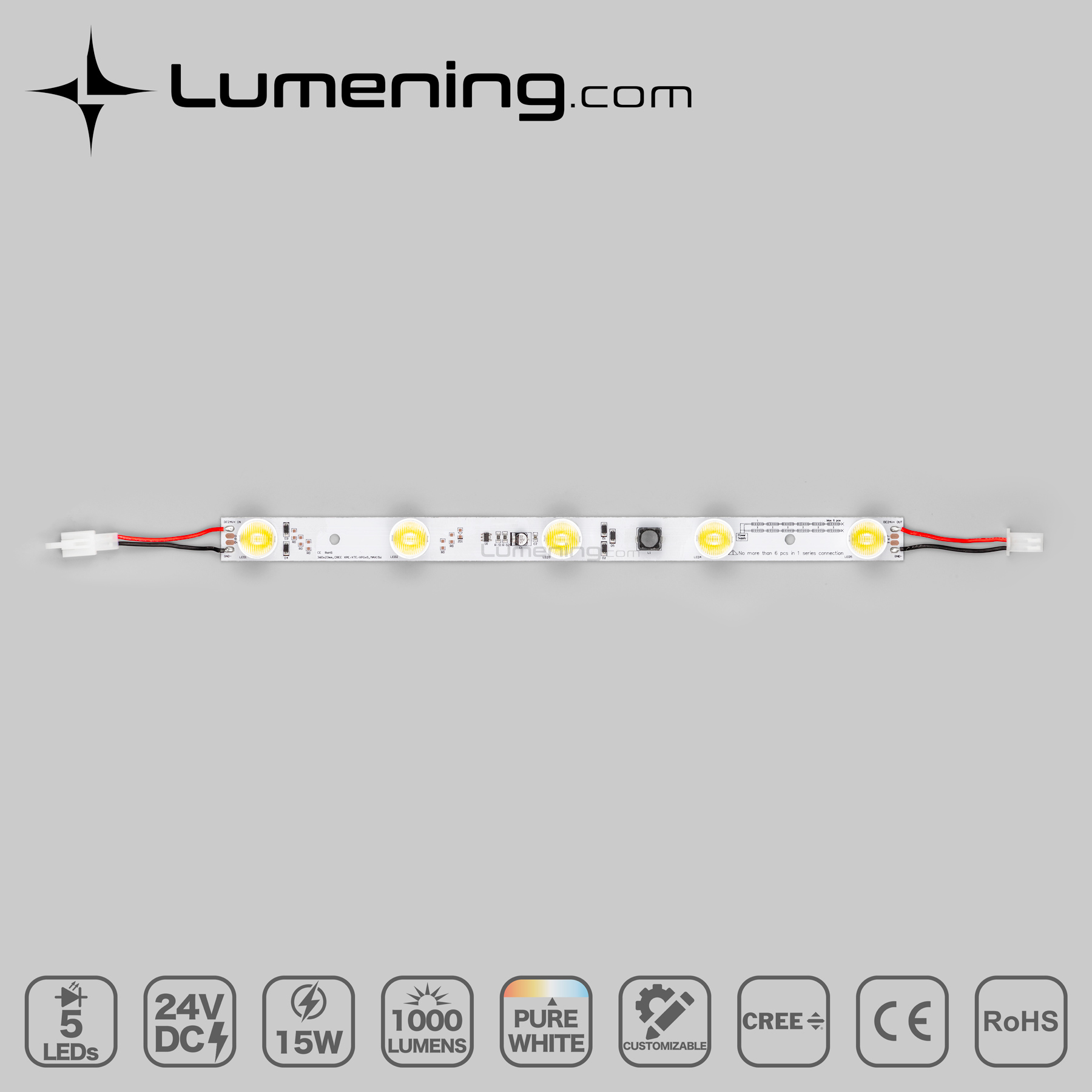

15W 24VDC Edge-lit LED Module for Light Box Sign

Lumening Edge-lit LED Module offers bright and uniform lighting for various light boxes with high-quality CREE LEDs and PMMA optics. Easy installation, energy efficiency, and full customization options backed by over a decade of expertise.

Key Features
  • CREE High-power LEDs
  • Onboard Constant Current Driver Unit.
  • Customization welcomed
  • 5-year warranty
Quick Specs
  • 5 LEDs
  • 24 V DC
  • 15 W
  • 1000 lumens
  • Body Length 360 mm(≈15 in.)
Category: Tags: , , , ,

Description

Transform your light boxes with our Edge-lit LED Module,(also called side-lit LED module, edge-light LED module, LED side illumination, etc.) ideal for single and double-sided LED light box signs, fabric SEG light boxes, LED canvas light boxes, and more.

Featuring high-performance CREE LEDs, the module ensures bright, even lighting with no hot spots. The 10°×45° PMMA optics provide optimal light distribution for various light box depths. Superior thermal dissipation is achieved through high-quality aluminum PCBs, enhancing LED longevity.

The constant current power unit guarantees stable performance. Easy installation with plug-and-play connections and reverse-polarity protection makes this module user-friendly. Energy-efficient, it drastically reduces power consumption compared to traditional solutions. Fully customizable to suit your specific needs, we offer tailored solutions.

Benefit from our decade-long expertise and high customer satisfaction for dependable, top-tier lighting solutions.

Check out other Lumening Edge-lit LED module for light boxes


Specifications

    All specs open to customization
Power Consumption 15 W
Power per LED 3 W
Input Voltage 24 V DC
Luminous Flux 1000 lumens ±5%
Beam Angle 10°×45°
Optic Material PMMA
CCT Correlated Color Temperature 6500 K 2500–7000 K Available for your selection
Light Color Pure White
CRI (Ra) Color Rendering Index 75-85
LED QTY. 5 LEDs
LED Model CREE XT-E
Chip Size 3535 3.5×3.5 mm
PCB Type Aluminum Backed
Cuttable No
Dimmable No ℹWe’ve designed this LED module with dimming capabilities which is NOT activated by default. If you want it dimmable, let us know before production.
Body Dimensions 360L×23W×15H mm (≈15L×1W×0.5H in.)
Length incl. Connectors ≈365 mm (≈21 in.)
LED Spacing 80 mm (≈3 in.)
IP Rating Ingress Protection Rating IP20
Waterproof No
Lifespan >50000 hours
Operating Temperature -30–60 °C (-22–140 °F )
Place of Origin GuangDong, China



Features

  • CREE High-power LEDs:

This module uses CREE XLamp XT-E, XP-G, and XP-E High-power LEDs as the light source for high efficacy and exceptional performance. Prefer other LEDs? We can use different high-quality options to fit your needs.

  • Quality Optics

The high-transmittance 10°×45° PMMA optics ensure bright and even illumination for 80-150mm deep single-sided and 160-300mm deep double-sided light boxes.

  • Onboard Constant Current Driver

The onboard constant current driver unit provides stable power to the LEDs for optimal performance, preventing flickering and extending their lifespan.

  • Easy Installation

Mount this LED module easily on light box aluminum extrusion with thumb screws or thermally conductive adhesive tapes. No professional skill is needed.

  • Foolproof Connections

Plug-and-play connections from module to module or driver. The Reverse-Polarity Protection design ensures it’s safe and operational even if connections are reversed. Enjoy a worry-free setup.

  • Efficient Heat Dissipation

The aluminum PCB rapidly transfers heat away from the LEDs, guaranteeing peak functioning and longevity.

  • 5-year Warranty

We back this product with a 5-year warranty. Should it fail due to manufacturing defects, we will repair or replace it at no charge.

Applications

  • Single-sided light boxes, Depth: 80–150 mm (≈3–6 in.)
  • Double-sided light boxes, Depth: 160–300 mm (≈6–12 in.)
  • LED light box displays and LED backlit graphic signs
  • Frameless SEG light box and LED canvas light boxes
  • Tension graphics and bespoke light boxes
  • Standing and wall-mounted light boxes and sign boxes
  • Sign boxes and sign cabinets
  • Stretch ceilings
  • Wall washers
