21W 24VDC Rigid LED Light Bar for Tension Fabric Light Boxes
Enhance your light box displays with our Rigid LED Light Bar. Featuring CREE LEDs and premium optics, it delivers superior illumination for thin light boxes. Easy to install, energy-efficient, and customizable, it’s the go-to solution for professionals seeking exceptional lighting results.
Key Features
- CREE High-power LEDs
- Elite Optics
- Onboard Constant Current Driver Unit.
- Customization welcomed
- 5-year warranty
Quick Specs
- 7 LEDs
- 24 V DC
- 21 W
- 1400 Lumens
- Body Length 350 mm(≈14 in.)
Description

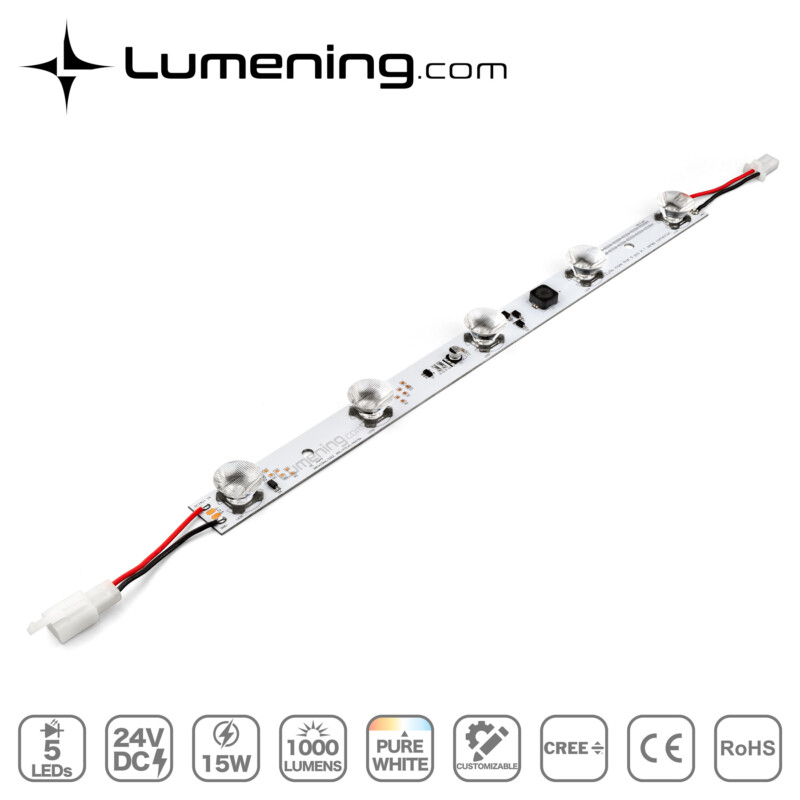

Illuminate your light box with our edge-lit LED module(also called rigid LED light bar, side light LED bar, side emitting LED module).
Powered by CREE high-power LEDs and paired with top-notch optics, this module delivers bright, even illumination for single and double-sided frameless SEG fabric light boxes, LED backlit displays and sign cabinets.
The high-quality aluminum PCB ensures excellent thermal dissipation, while the onboard constant current power unit optimizes LED performance. Designed for hassle-free installation, this LED module can be easily mounted using thumb screws or adhesive tapes. The cuttable design ensures a nice fit to light boxes of various sizes. Its plug-and-play connectivity and reverse-polarity protection make setup a breeze. Energy-efficient and fully tested, our edge-lit LED module is the go-to choice for professionals seeking reliable, high-performance lighting solutions.
With over a decade of experience, we offer customization options to meet your specific project needs. Transform your light box displays with our industry-leading edge-lit LED module.
Check out other awesome Lumening Edge-lit LED modules for your light boxes
Specifications
All specs open to customization
| Power Consumption | 21 W |
| Power per LED | 3 W |
| Input Voltage | 24 V DC |
| Luminous Flux | 1400 lm ±5% |
| Beam Angle | 9°×54° |
| Optic Material | PMMA |
| CCT Correlated Color Temperature | 6500 K 2500–7000 K Available for your selection |
| Light Color | Pure White |
| CRI (Ra) Color Rendering Index | 75-85 |
| LED QTY. | 7 LEDs |
| LED Model | CREE XT-E |
| Chip Size | 3535 3.5×3.5 mm |
| PCB Type | Aluminum Backed |
| Cuttable | Yes |
| Cut Length | 200 mm (≈6.5 in.)(4 LEDs) + 150 mm(≈6 in.)(3 LEDs) |
| Dimmable | No We’ve designed this LED module with dimming capabilities which is NOT activated by default. If you want it dimmable, let us know before production. |
| Body Dimensions | 350L×23W×15H mm (≈14L×1W×0.5H in.) |
| Length incl. Connectors | ≈515 mm (≈20 in.) |
| LED Spacing | 50 mm (≈2 in.) |
| IP Rating Ingress Protection Rating | IP20 |
| Waterproof | No |
| Lifespan | >50000 hours |
| Operating Temperature | -30–60 °C (-22–140 °F ) |
| Place of Origin | GuangDong, China |
Features
CREE High-power LEDs:
This module uses CREE XLamp XT-E, XP-G, and XP-E High-power LEDs as the light source for high efficacy and exceptional performance. Prefer other LEDs? We can use different high-quality options to fit your needs.
Elite Optics
The advanced high-transmittance 9°×54° optics ensure bright and even illumination for 6.5-20 cm deep single-sided and 13-35 cm deep double-sided light boxes.
Cuttable
This LED module is cuttable from about half of its length. Simply trim the PCB at the cut marks to achieve a snug fit for your light boxes’ dimensions.
Onboard Constant Current Driver
The onboard constant current driver unit provides stable power to the LEDs for optimal performance, preventing flickering and extending their lifespan.
Easy Installation
Mount this LED module easily on light box aluminum extrusion with thumb screws or thermally conductive adhesive tapes. No professional skill is needed.
Foolproof Connections
Plug-and-play connections from module to module or driver. The Reverse-Polarity Protection design ensures it’s safe and operational even if connections are reversed. Enjoy a worry-free setup.
Efficient Heat Dissipation
The aluminum PCB rapidly transfers heat away from the LEDs, guaranteeing peak functioning and longevity.
5-year Warranty
We back this product with a 5-year warranty. Should it fail due to manufacturing defects, we will repair or replace it at no charge.
Applications
- Single-sided light boxes, Depth: 6.5–20 cm (≈2.5–7.5 in.)
- Double-sided light boxes, Depth: 13–35 cm (≈5–13.5 in.)
- LED light box displays and LED backlit graphic signs
- Frameless SEG light box and LED canvas light boxes
- Tension graphics and bespoke light boxes
- Standing and wall-mounted light boxes and sign boxes
- Sign boxes and sign cabinets
- Stretch ceilings
- Wall washers
