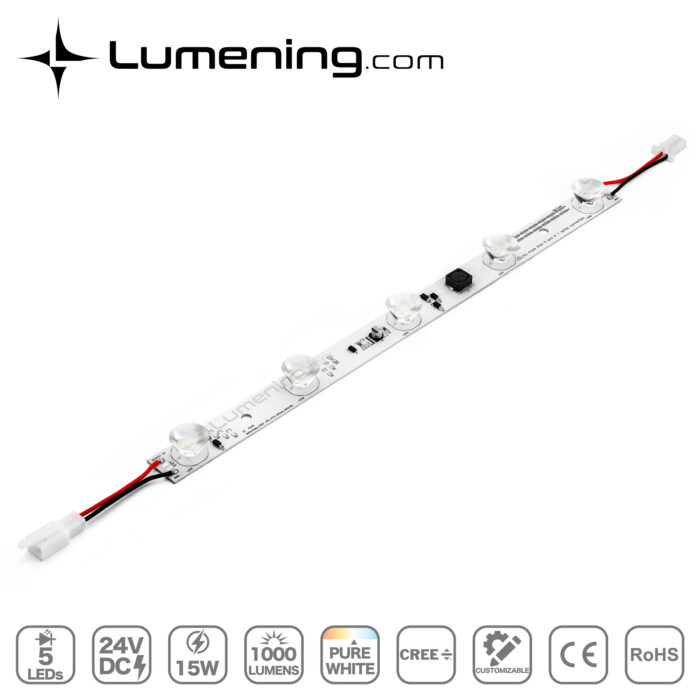

Edge-lit LED module for tension fabric SEG light-box displays that are used in exhibitions and shops

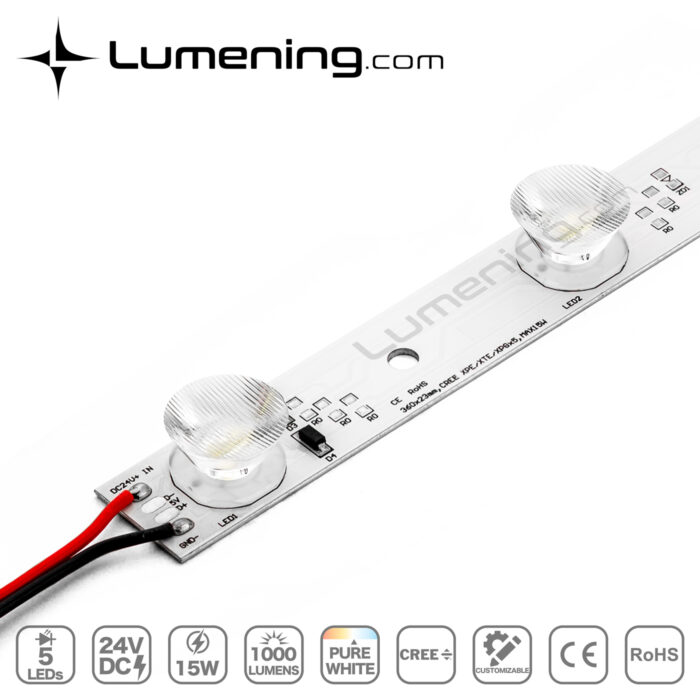

Magnified partial view of edge-lit LED module for fabric SEG light box displays, showing a section of its aluminum PCB and 2 of the 5 high transmittance lenses.

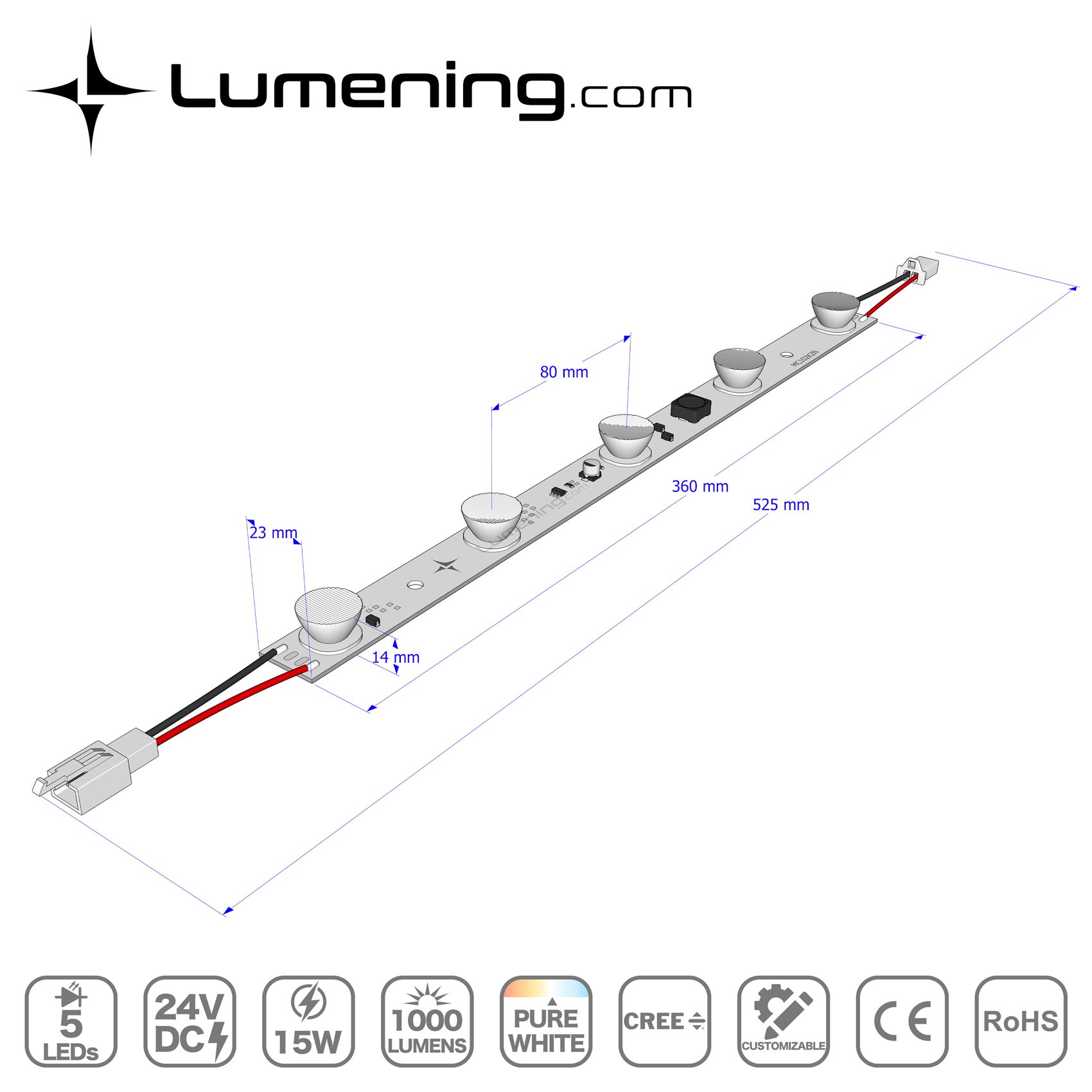

Showing key dimensions of edge-lit LED module model MC102K2N, including length, width, height and LED spacing.

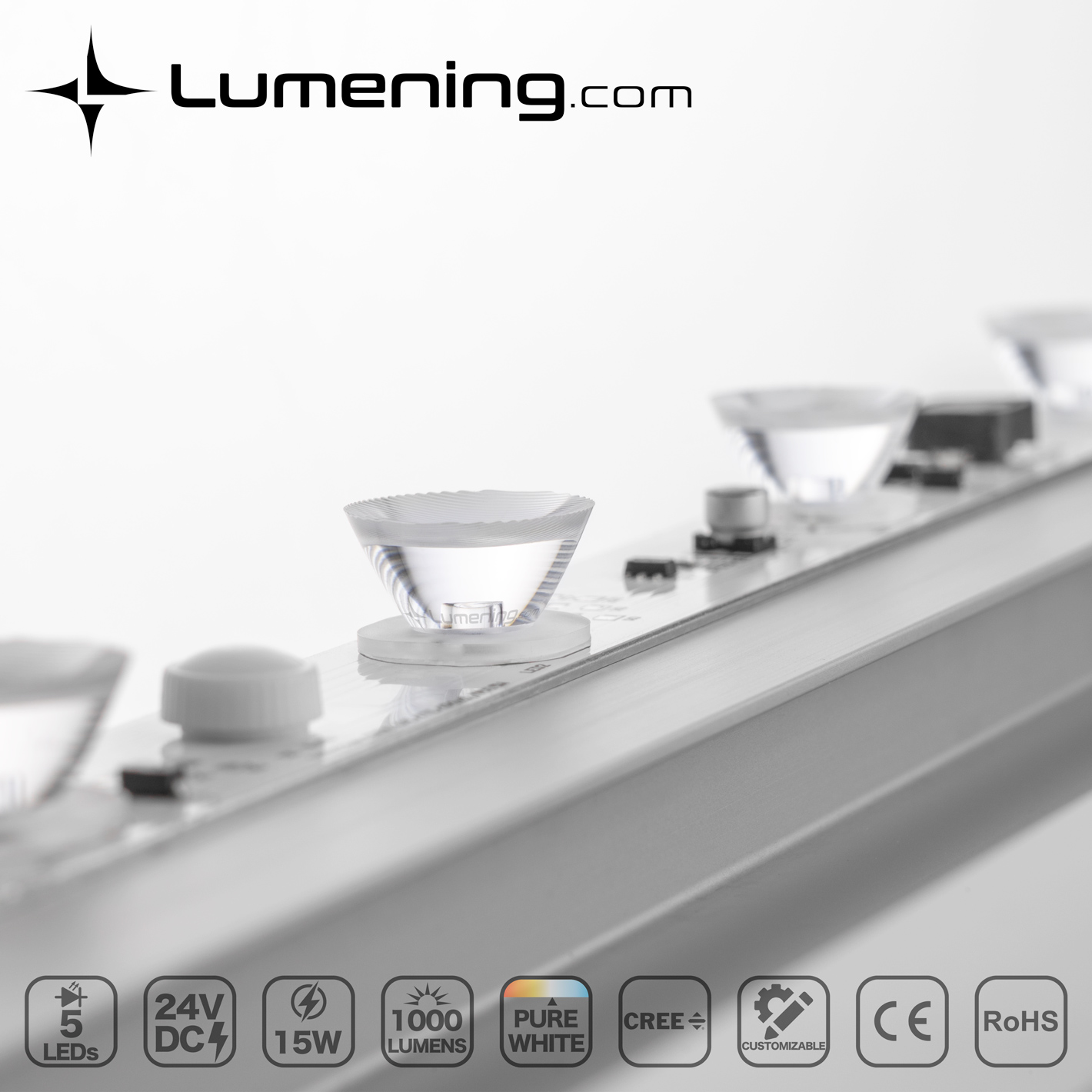

Edge-lit LED module advanced lens closeup shot showing its details

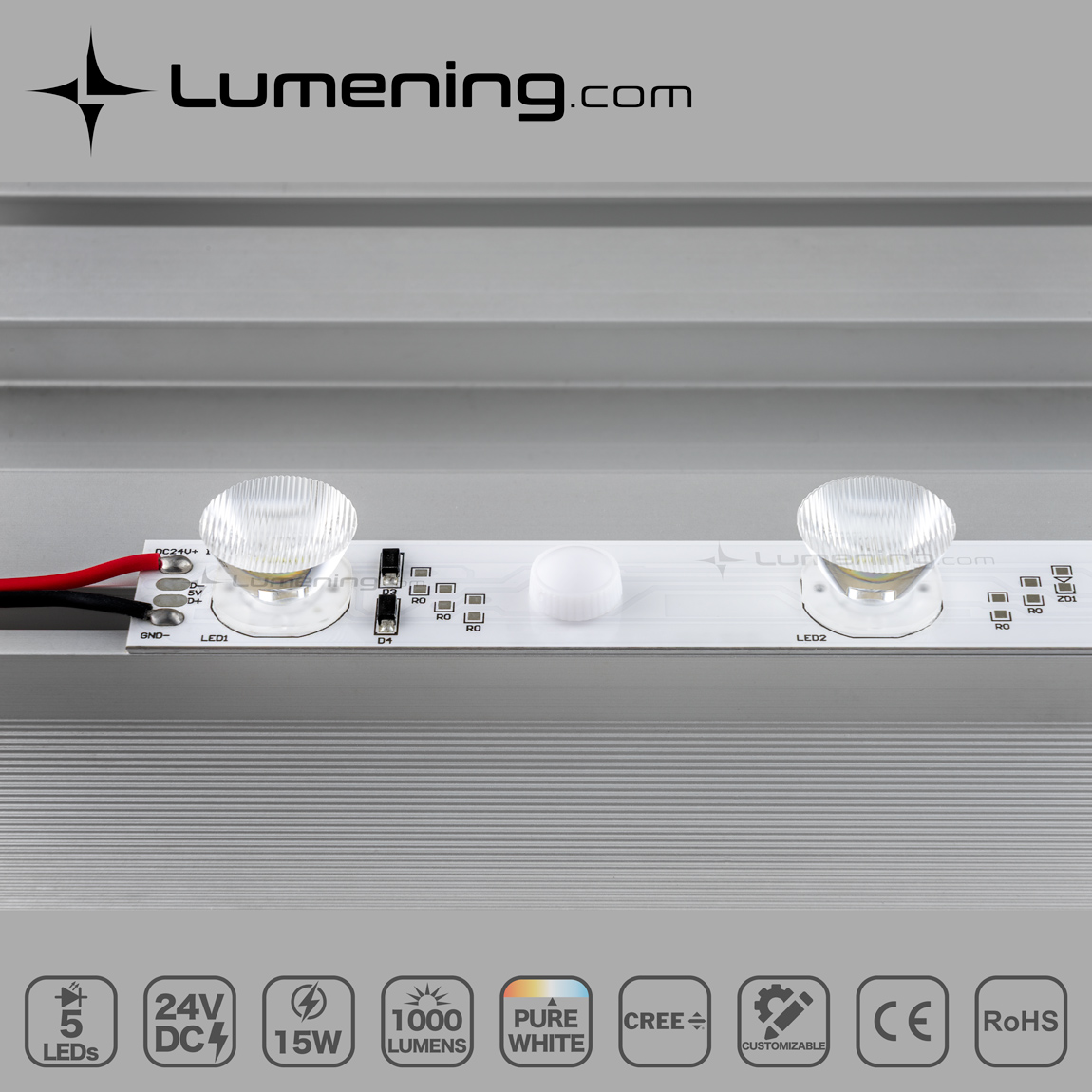

Edge-lit LED module mounted on light-box aluminum frame with thumb screws closeup showing details

15W 24VDC Edge-lit LED Module for Exhibition Fabric Light-box Displays

Our Edge-Lit LED Module uses CREE high-power LEDs for bright, even illumination on light boxes. Advanced lenses support taller, thinner designs, while the aluminum PCB ensures efficient heat dissipation. Easy installation and customization options make it excellent for numerous projects
Model     MC102K2N
Key Features
  • CREE High-power LEDs
  • Elite Lenses
  • Onboard Constant Current Driver Unit.
  • Customization welcomed
  • 5-year warranty
Quick Specs
  • 5 LEDs
  • 24 V DC
  • 15 W
  • 1000 Lumens
  • Body Length 360 mm(≈14 in.)
Category: Tags: , , , ,

Description

Introducing our premium Edge-Lit LED Module(also known as LED side light module, LED module with lenses, edge LED module etc.), the perfect lighting solution for frameless SEG fabric light boxes, sign boxes, and LED light box displays.

Powered by CREE high-power LEDs, renowned for their exceptional performance, our module delivers bright, even illumination without hot spots or dark areas. The top-notch lenses ensure that light is distributed evenly across the surface, allowing for taller and thinner light boxes without compromising on quality.

With a high-quality aluminum PCB, our module boasts excellent thermal dissipation, ensuring optimal performance and longevity. The onboard constant current power unit provides a steady electric current, maximizing efficiency and light output. Installation is a breeze with thumb screws or thermally conductive adhesive tapes, and the plug-and-play connections with reverse-polarity protection make wiring simple and safe.

As an experienced LED lighting manufacturer with over 10 years of experience, we offer top-notch customization services to tailor the LED module to your specific needs. Experience worry-free lighting with our reliable, high-quality products.

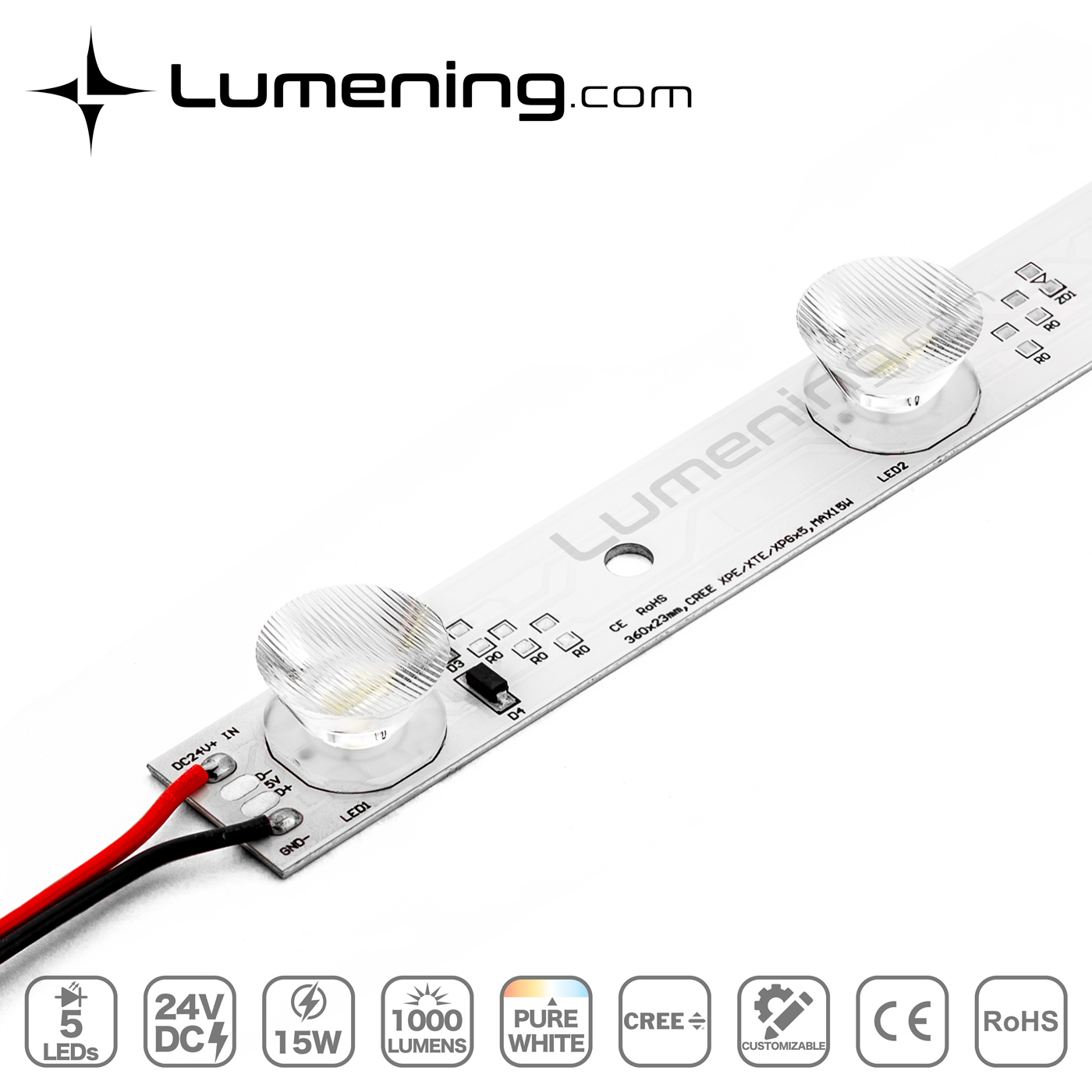

Magnified partial view of edge-lit LED module for fabric SEG light box displays, showing a section of its aluminum PCB and 2 of the 5 high transmittance lenses.

Edge-lit LED module advanced lens closeup shot showing its details

Edge-lit LED module mounted on light-box aluminum frame with thumb screws closeup showing details



Check out other awesome Lumening Edge lit LED modules for your light boxes


Specifications

    All specs open to customization
Model NumberMC102K2N
Power Consumption15 W
Power per LED3 W
Input Voltage24 V DC
Luminous Flux1000 lumens ±5%
Beam Angle9°×54°
Optic MaterialPMMA
CCT Correlated Color Temperature6500 K 2500–7000 K Available for your selection
Light ColorPure White
CRI (Ra) Color Rendering Index 75-85
LED QTY.5 LEDs
LED Model CREE XT-E
Chip Size3535 3.5×3.5 mm
PCB TypeAluminum Backed
CuttableNo
DimmableNo ℹWe’ve designed this LED module with dimming capabilities which is NOT activated by default. If you want it dimmable, let us know before production.
Body Dimensions360L×23W×14Hmm (≈14L×1W×0.5H in.)
Length incl. Connectors≈525 mm (≈21 in.)
LED Spacing80 mm (≈3 in.)
IP Rating Ingress Protection RatingIP20
WaterproofNo
Lifespan>50000 hours
Operating Temperature-30–60 °C (-22–140 °F )
Place of OriginGuangDong, China

Showing key dimensions of edge-lit LED module model MC102K2N, including length, width, height and LED spacing.

Features

  • CREE High-power LEDs:

This module uses CREE XLamp XT-E, XP-G, and XP-E High-power LEDs as the light source for high efficacy and exceptional performance. Prefer other LEDs? We can use different high-quality options to fit your needs.

  • Elite Optics

The advanced high-transmittance 9°×54° optics ensure bright and even illumination for 6.5-20 cm deep single-sided and 13-35 cm deep double-sided light boxes.

  • Onboard Constant Current Driver

The onboard constant current driver unit provides stable power to the LEDs for optimal performance, preventing flickering and extending their lifespan.

  • Easy Installation

Mount this LED module easily on light box aluminum extrusion with thumb screws or thermally conductive adhesive tapes. No professional skill is needed.

  • Foolproof Connections

Plug-and-play connections from module to module or driver. The Reverse-Polarity Protection design ensures it’s safe and operational even if connections are reversed. Enjoy a worry-free setup.

  • Efficient Heat Dissipation

The aluminum PCB rapidly transfers heat away from the LEDs, guaranteeing peak functioning and longevity.

  • 5-year Warranty

We back this product with a 5-year warranty. Should it fail due to manufacturing defects, we will repair or replace it at no charge.

Applications

  • Single-sided light boxes, Depth: 6.5–20 cm (≈2.5–7.5 in.)
  • Double-sided light boxes, Depth: 13–35 cm (≈5–13.5 in.)
  • LED light box displays and LED backlit graphic signs
  • Frameless SEG light box and LED canvas light boxes
  • Tension graphics and bespoke light boxes
  • Standing and wall-mounted light boxes and sign boxes
  • Sign boxes and sign cabinets
  • Stretch ceilings
  • Wall washers
